Z9220

Interfaces

USB / LAN / Bluetooth /WIFI (optional)

Print Comand

CPCL / TSPL command (ESC/POS command)

Print Method

Direct Line Thermal

Resolution

203DPI (8dot/mm)

Print Speed

Max to 160mm/s

Media Sensor

Transmissive and Reflective

Inner Code

Supported 11 types font size

Print parameters

Support to download the Logo trademark

One-dimensional code

UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128

Two-dimensional code

QR CODE,PDF417

Printer Driver

Win2003 / WinXP / Win7 / WIN8 / WIN10 / MACOS ; Support IOS / Android

Paper

Thermal Paper Types

continuous paper, label paper, folded paper, tag paper

Max paper roll

110*100mm (width*diameter)

Effective Print Width

104mm (Max 800 points)

Available Max Paper Width

110 ± 0.5mm

Paper Thickness

0.06-0.30 mm

Package

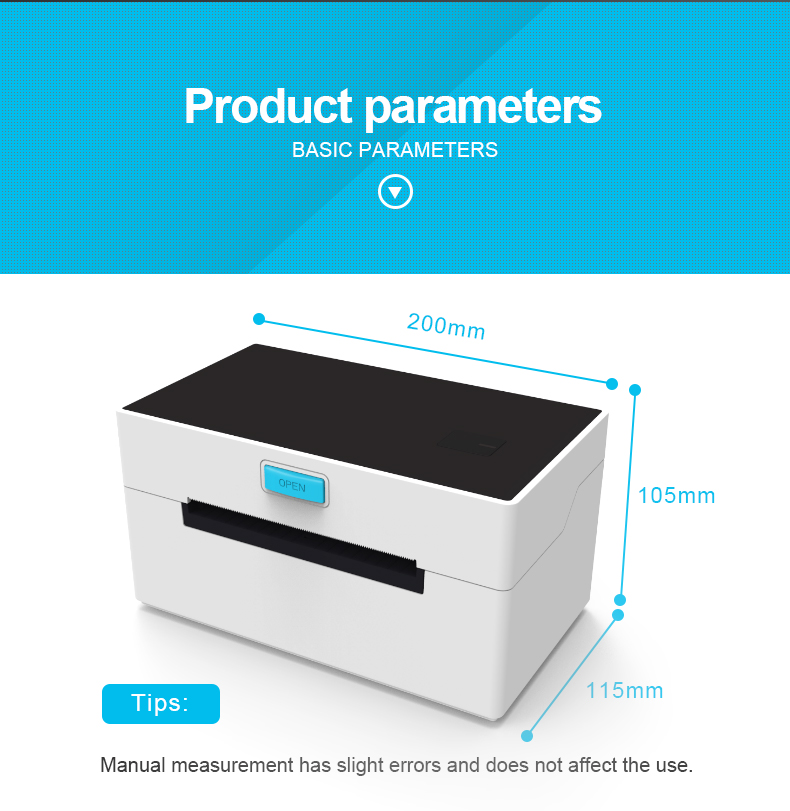

Printer Dimension

20*11.5*11cm

Printer N.W.

0.98KG

Package

1pc with accessories/box, 8 boxes/ctn

Accessories

Manual, USB Cable, Adapter, Power Cable , Paper Stand

Box Dimension

23*19*17CM

Box G.W.

1.9Kgs

CTN Dimension

47.5*39.5*35.5 cm

CTN G.W.

16kgs

Environmental

Working Temperature

+0 ℃ ~ 50 ℃ (no condensation )

Working Humidity

20% ~ 85% RH (no condensation )

Storage Temperature

-20 ℃ ~ 60 ℃ (no condensation )

Storage Humidity

5% ~ 95% RH (no condensation )

Mechanical Noise

less than 60dB
