Z9200

Interfaces

USB / LAN / Bluetooth

Print Comand

CPCL / TSPL command (ESC/POS command)

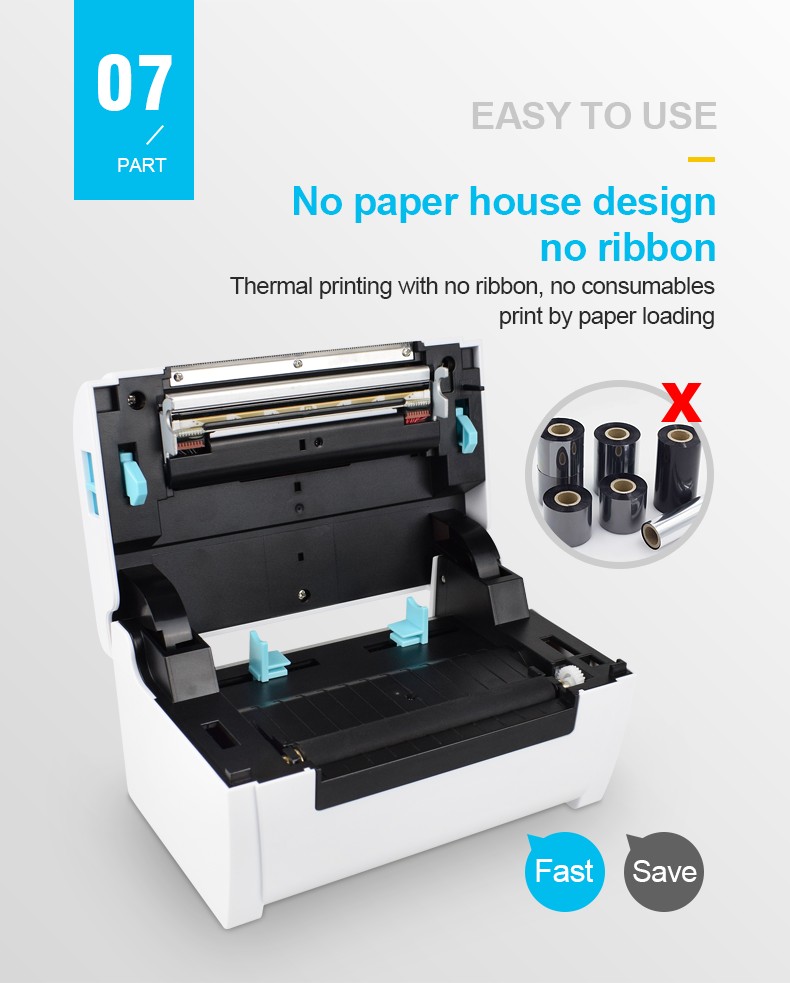

Print Method

Direct Line Thermal

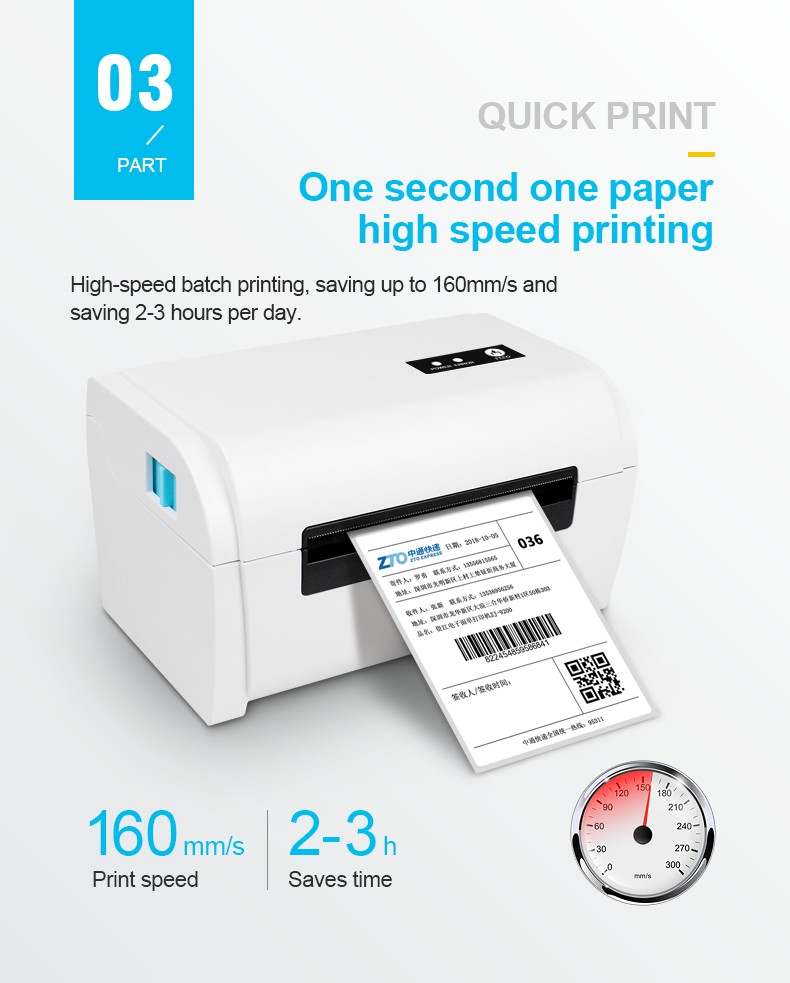

Pirnt Speed

Pirnt Speed

Resolution

203DPI (8dot/mm)

Inner Code

Supported 11 types font size

Print parameters

Support to download the Logo trademark

Media Sensor

Dual-media sensors: transmissive and reflective

One-dimensional code

UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128

Two-dimensional code

QR Code, PDF417

Printer Driver

Win2003 / WinXP / Win7 / WIN8 / WIN10 / MACOS ; Support IOS / Android

Paper

Thermal Paper Types

continuous paper, label paper, folded paper, tag paper

Effective Print Width

100mm (Max 800 points)

Available Max Paper Width

110 ± 0.5mm

Paper Thickness

0.06-0.30 mm

Electrical

Charging Method

external charger DC 24V/2.5A

Print Head

Reliability

Print Reliability

100000000 pulse / dot or 50km

Physical

Printer Dimension

180*115*107mm

Unit Weight

1.50kgs （with accessories)

Pieces Per CTN

12 Pieces

Printer Color

White

CTN Dimension

40 x 37.5 x 40 cm

Gross Weight

18kgs

Environmental

Operating Temperature

+0 ℃ ~ 50 ℃ (no condensation allowed)

Working Humidity

20% ~ 85% RH (no condensation allowed)

Storage Temperature

-20 ℃ ~ 60 ℃ (no condensation allowed)

Storage Humidity

5% ~ 95% RH (no condensation allowed)

Mechanical Noise

less than 60dB (A weighted RMS)
