Z8370

Specifications

Print Method

Direct Line Thermal

Interfaces

USB / LAN / Bluetooth  (optional)

Print Comand

ESC / POS command

Print Speed

220mm/s

Resolution

203DPI (8dot/mm)

TPH Reliability

100km

Auto Cutter

Partial

Cutter Life

1.0 million cuts

Logo

support downloading and printing logo

Line Spacing

3.75mm (Adjustable by commands)

Extension Character
Sheet

PC437（Standard Europe）、Katakana、PC850（Multilingual）、PC860
（Portuguese）、PC863（Canadian）、PC865（Nordic） 、West Europe、Greek
、 Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852
（Latin2）、PC858、IranII、Latvian、Arabic 、Thai、PT151（ 1251）

Character Size

ANK，Font A： 1.5×3.0mm（ 12×24 dots）  Font B： 1.1×2.1mm（9×17 dots）
Chinese, Traditional Chinese:3.0×3.0mm（24×24 dots）

Supported Code:

1D:  UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF /
CODABAR /
        CODE93 / CODE128

Input Buffer

96K bytes

NV Flash

256K bytes

Driver

Win2003 / WinXP / Win7 / WIN8 / WIN10 / Linux ; Support IOS / Android

Power

Input：AC 110V/220V, 50～60Hz ;  Output：DC 24V/ 1.5A

Paper

Paper Types

Thermal Roll Paper

Paper Width

79.5±0.5mm / φ 80 mm

Print Width

72mm

Paper Thickness

0.06-0.08 mm

Package

Printer Dimension

17.47*14.17*12.23cm

Printer N.W.

0.84 kg

Package

1pc with accessories/Box, 12 boxes/CTN

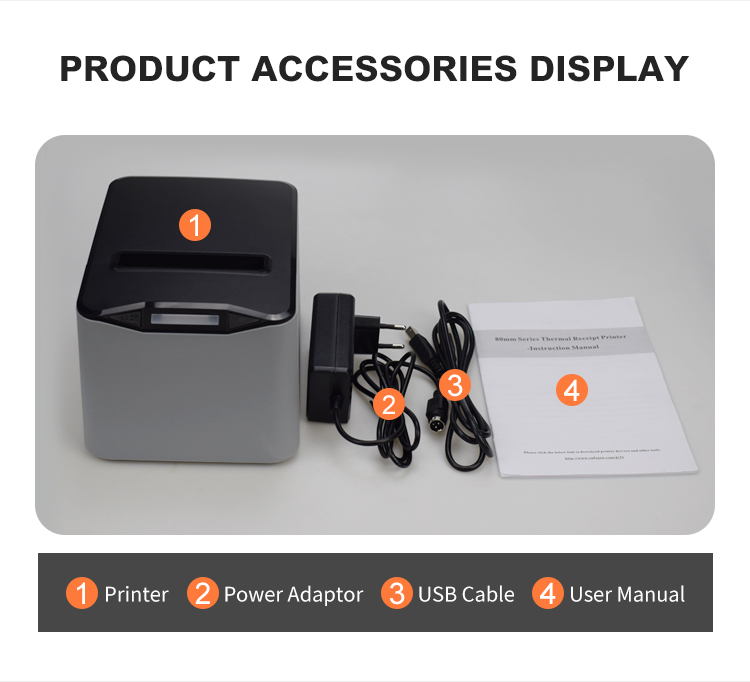

Accessories

Manual, USB Cable, Power Adapter, Paper Roll

Box Dimension

20.3*18.6*13.9 CM

Box G.W.

1.22 Kgs

CTN Dimension

61.4*38.8*29.8 CM

CTN G.W.

15Kgs

Environmental Requirements

Work Environment

Temperature (0～45℃)  humidity( 10～80%)

Storage Environment

Temperature(-10～60℃) humidity( 10～90%)

Mechanical Noise

less than 60dB
