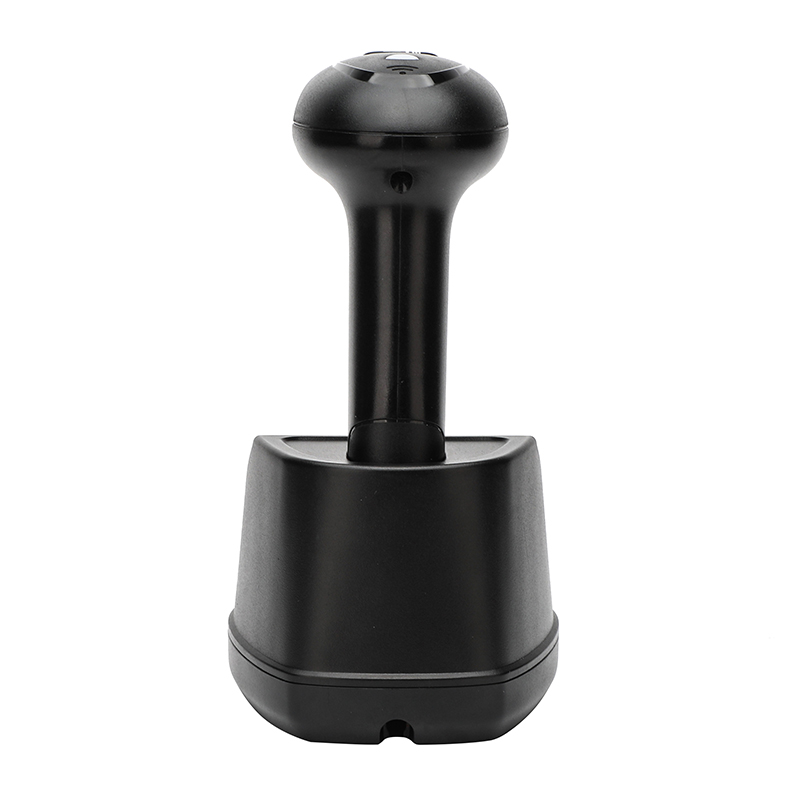

Z6900T10WD-S

wireless spectrum

2.4G

Sensor pixels

640X 480 COMS

light source

Aim at 630nm LED; Lighting: 6500KLED

Rotation, tilt, deflection

Corner angle 360 º, elevation angle ± 55 º, deviation angle ± 55 º

Print contrast

25% minimum reflection difference

Motion tolerance

1.8M/S

Interface support

RS232 & USB(HID-KBW &  )  TYPE-C

Wireless distance

80-100m open visual environment

Memory

4Mb (can store 20000 barcodes, calculated in 13 characters)

decodability

One dimensional barcode

EAN13,EAN-8,UPC-A,Code39,Code93,Code128,codabar(nw-7),ISSN,

ISBN,GS1-Databar,GS1-128 Composite Code,Code 11,Industrial 25 ,MSI Plessey ， etc,ITF-6,ITF-14, Rss ,China Post,interleaved 2 of 5

2d barcode

QR Code, Data Matrix,Maxicode, PDF417

Usage environment

operation temperature

-20℃~+50℃

storage temperature

-40℃~+70℃

humidity

5%~95% non condensing

Seismic activity

Can withstand a free fall of 1.5 meters

ambient lighting

0~100000LUX

Decoding range

EAN-13

50mm-150mm (13mil)

Code39

40mm-100mm  （5mil 10byte  ）

QR Code

25mm-180mm (20mil 16byte  )

Data Marix

50mm-90mm  （10mil 20byte  ）

PDF 417

30mm-90mm (6.67mil 7byte  )

1D Minimal resoluton       (128)

≥5mil

2D Minimal resoluton         (QR)

≥7mil

Depth of field can be adjusted according to customer requirements, and performance may be affected by barcode quality and environmental conditions

physical property
