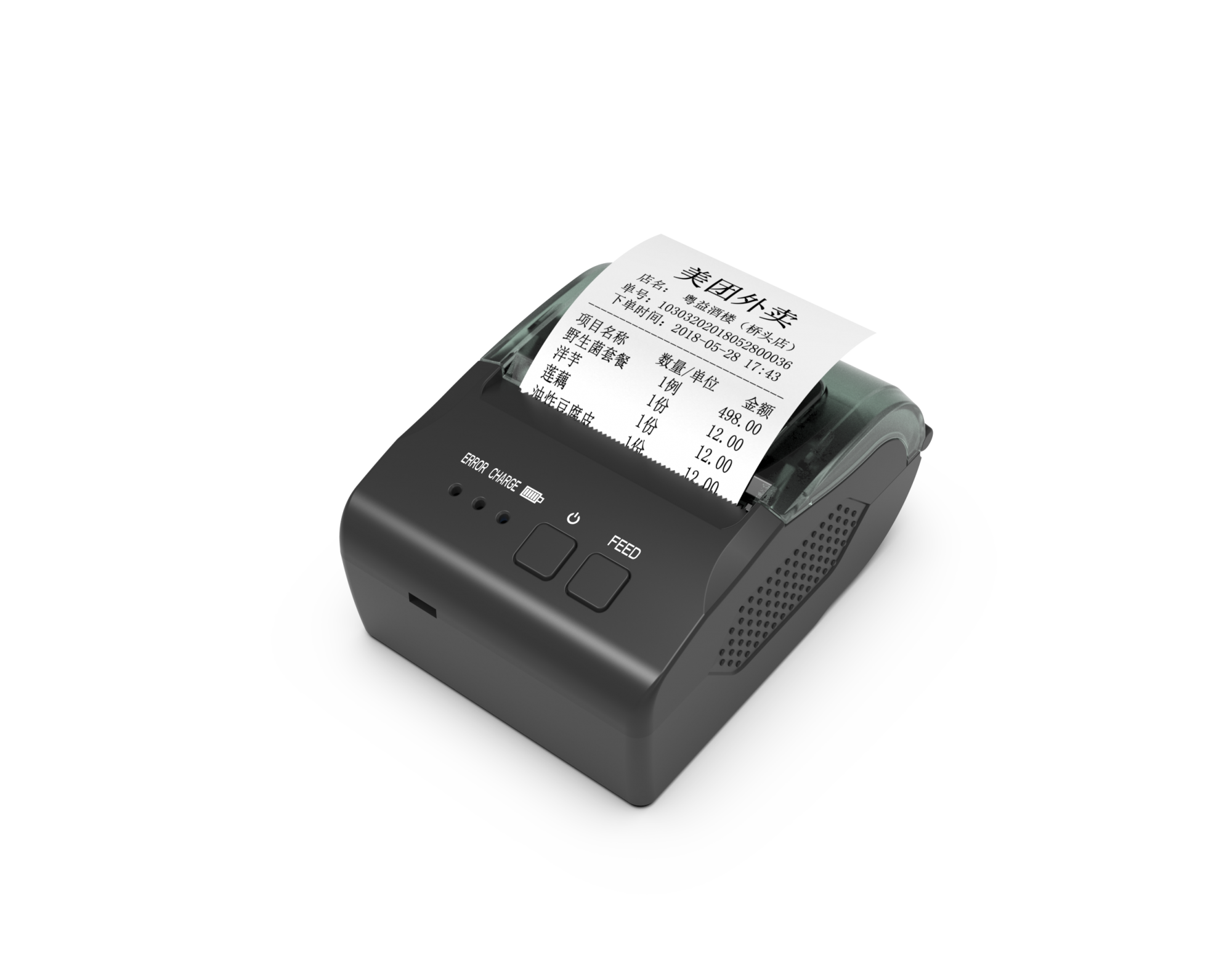

Z5810

Print Method

Direct Line Thermal

Interfaces

Type-c +Bluetooth

Print Comand

ESC / POS command

Print Speed

70mm/s

Resolution

203DPI (8dot/mm)

TPH Reliability

50km

Logo

support downloading and printing logo

Printing Density

384 dots/line

Extension Character
Sheet

PC437（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、Thai、PT151（1251）

Character Size

ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese, Traditional Chinese:3.0×3.0mm（24×24 dots）

Supported Code:

1D:  UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF /  CODABAR /
        CODE93 / CODE128
2D:  QR CODE, PDF417

Driver

Windows / Linux / Mac OS / OPOS / Android

Power Adapter

Input：AC 100-240V, 50～60Hz ;  Output：DC 5V/1A  (Optional)

Battery Power

7.4V/1500mA

Paper

Paper Types

Thermal Roll Paper

Paper Width

57.5±0.5mm / φ 43 mm

Print Width

48mm

Paper Thickness

 0.06-0.08 mm

Package

Package

1pc with accessories/Box, 40 boxes/CTN

1pc with accessories/Box, 60 boxes/CTN

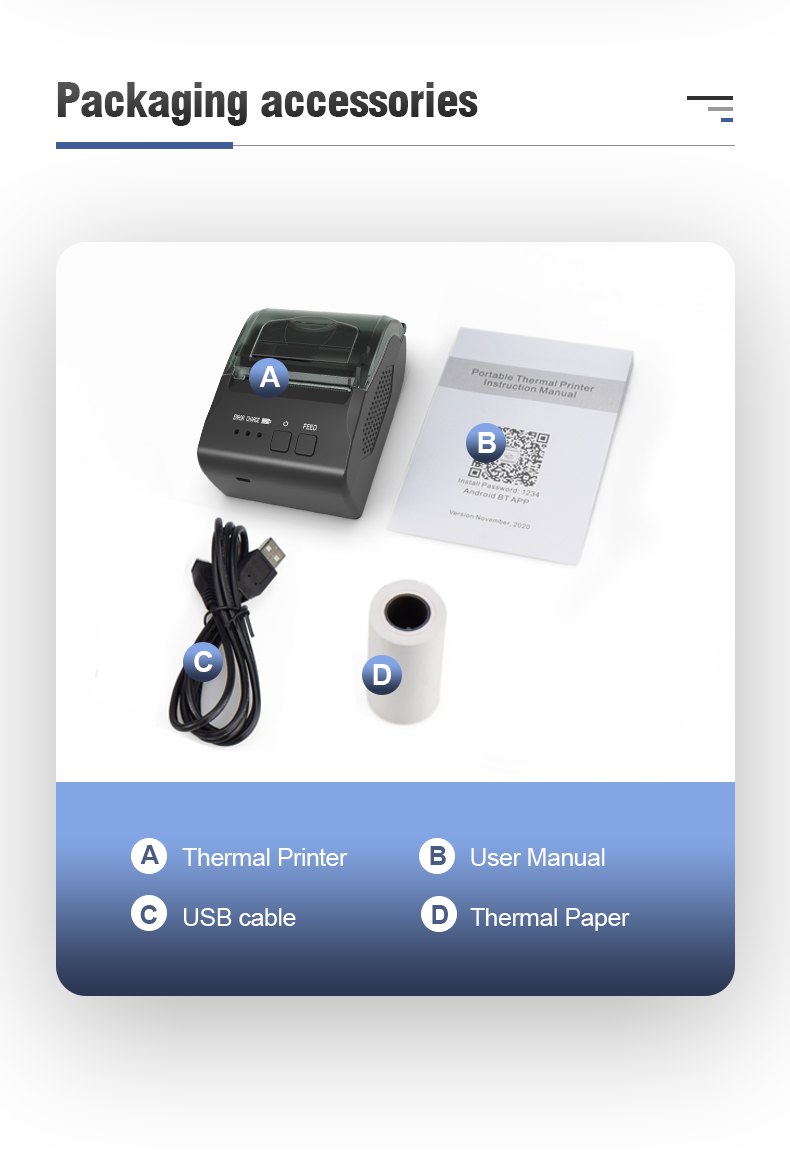

Accessories

Manual, USB Cable, Power Adapter, Paper Roll

Manual, USB Cable, Paper Roll

Box Dimension

14.7*11.9*7 CM

12*6.2*11 CM

Box G.W.

0.42 Kgs

0.3 Kgs

CTN Dimension

50*31.4*37.2 CM

37.5*33.5*46 CM

CTN G.W.

17.6 Kgs

18.8 Kgs

Environmental Requirements

Work Environment

Temperature (0～45℃)  humidity(10～80%)

Storage Environment

Temperature(-10～60℃) humidity(10～90%)
